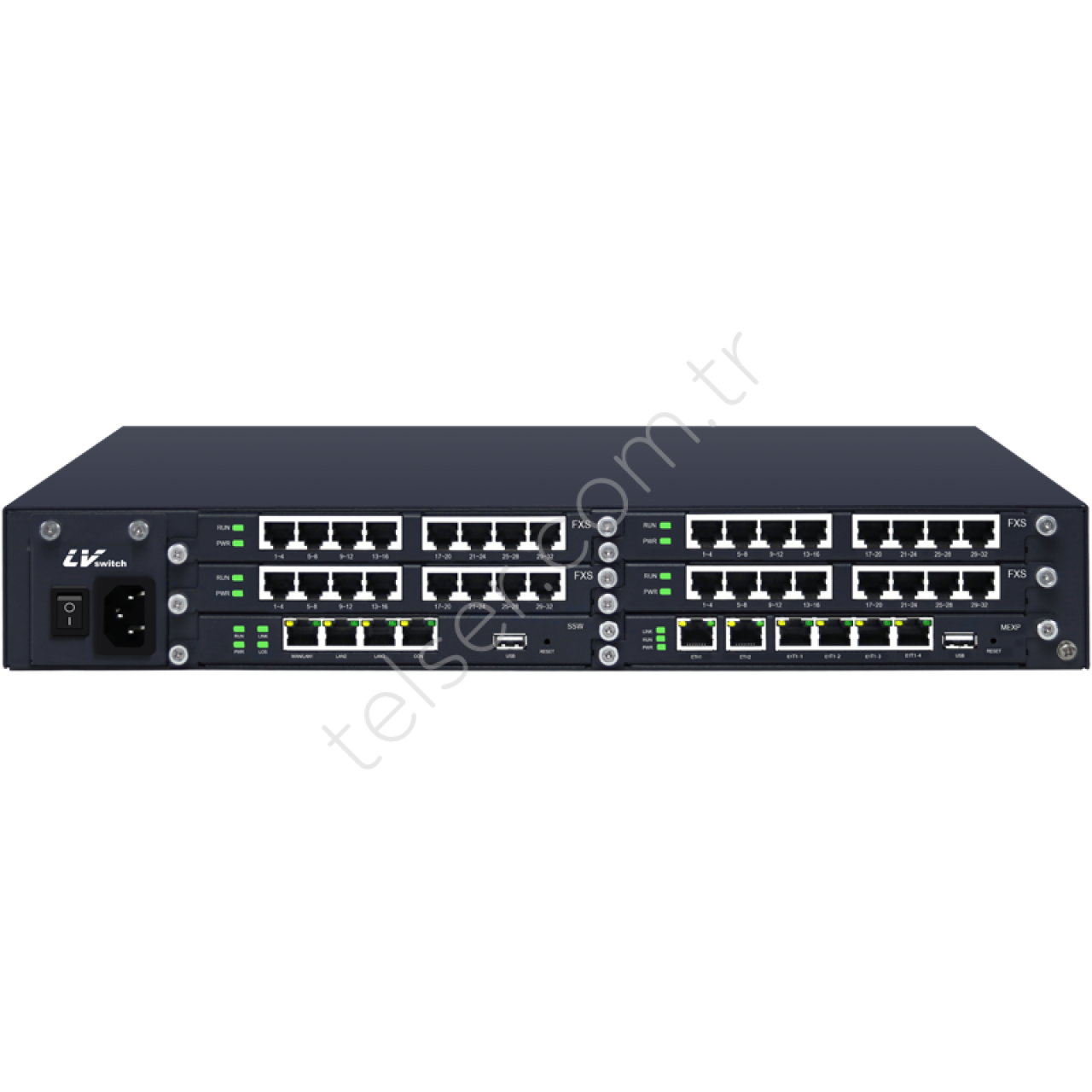

LvSwitch IP PBX3000 Hybrid İp Santral
LvSwitch IP PBX3000 Genel Özellikleri
- Maksimum 128 port analog FXO dış ve FXS iç hat
- Maksimum 500 ip abone
- Maksimum 200 sip trunk
- 3 adet gigabit eternet portu
- IVR robot operatör
- Tüm iç ve dış hat ses kaydı
- Çağrı kuyruk yapısı
- Tüm hatlarda arayan numara gösterme CID
- 10 adet ip abone lisansı
- Entegre güvenlik duvarı Fire wall
- Technical index

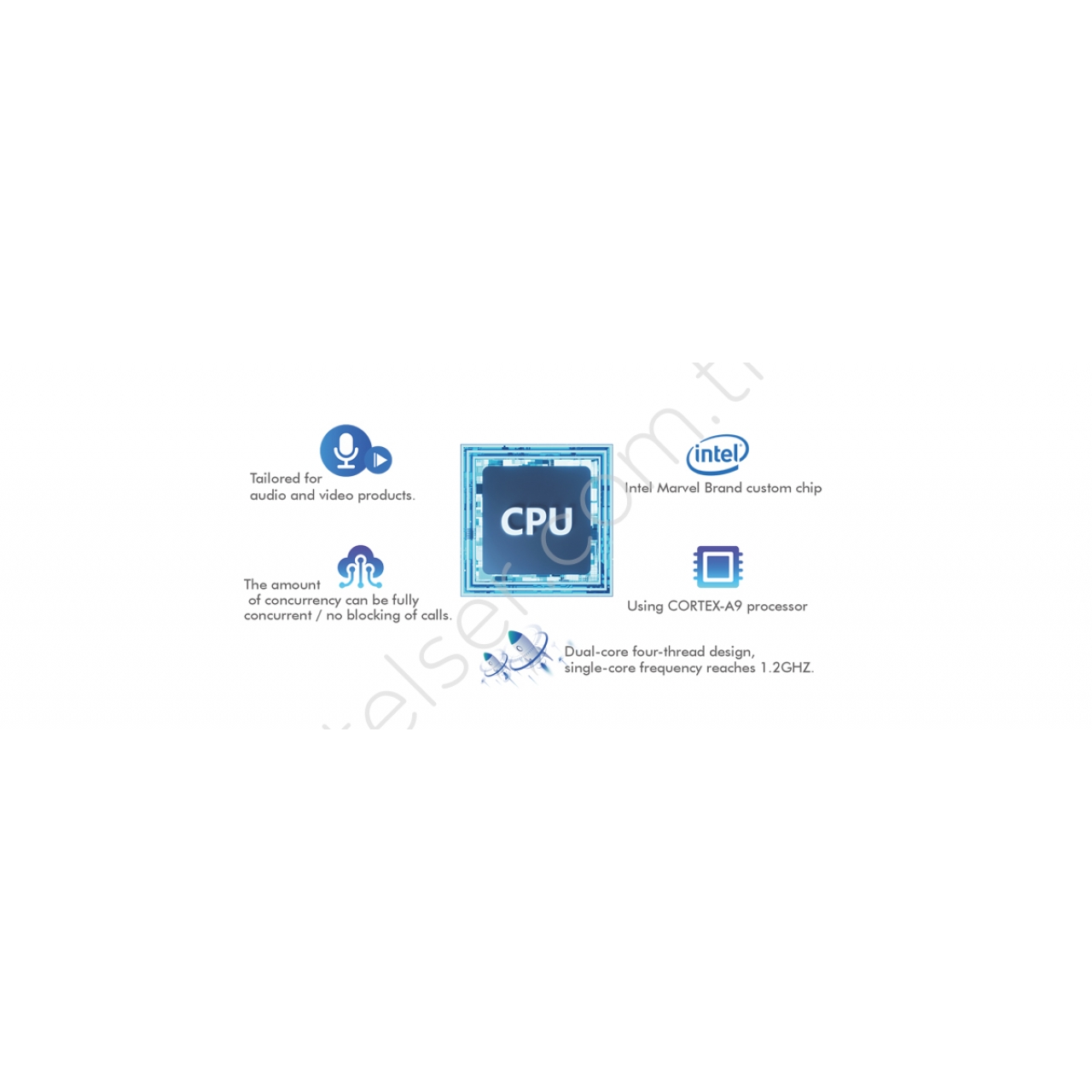

- Main processor: high-performance ARM CPU
- Memory: 4Gb
- Flash: 4Gb
- Network interface: 3 gigabit network ports
- Signaling and protocol: VoIP protocol: SIP protocol, network management protocol: NMP, TR069
- Voice codec: G.711U, G.711A, G.723, G.729, iLBC
- DTMF: RFC2833, SIP Info, Inband
- Fax business: support T.30, T.38, support transparent fax transmission, ensure reliable fax transmission
- Voice processing: support dynamic jitter buffer (JITTER BUFFER), voice detection (VAD),
echo cancellation, comfortable background noise generation (CNG)
Weight and size: Net weight: ≤8KG Form: ≤1.5U, standard rack
Dimensions (W×D×H): 443x356x64mm - Power supply and power: AC input rated voltage range 100V a.c.~240V a.c; 50/60Hz;Maximum power 150W
- Environmental requirements: working environment temperature: 0℃~40℃, relative humidity of environment 5%~90%;Altitude: no performance degradation within 3000m, atmospheric pressure 86KPa~106KPa;Dustproof: the concentration of particles in the air is less than 180 mg/m3.
- Support SIP terminal phone: SIP multimedia terminal, ordinary SIP hard terminal, SIP soft terminal
Support POTS terminal phone: POTS phone connected with LVSWITCH series, POTS phone connected
with SIP IAD - IMS service: Supports access to the IMS network, and can act as an agent for users under the LVSWITCH series and traditional PBX users connected through the LVSWITCH series to register with IMS, so that users can enjoy various IMS services.
- Call statistics: support detailed call records CDR, statistics of incoming, outgoing, intra-office, outgoing,
long-distance and local traffic information, user call statistics, department call statistics
Routing processing: Outbound routing: Outbound routing attributes include enterprise internal, local calls,domestic long distance and international long distance. - Inbound routing: when analog trunk/FXO access, set the inbound strategy
Called number identification: Allows the use of different call-in strategies according to the incoming DNIS. - This function is usually used for extension numbers with multiple routing strategies
Policy routing: support routing backup, support time-based routing - Number change: supports insert/modify/delete operations of calling and called numbers, and support
number change based on relay - Dialing rules: support digital map configuration, support routing-based dialing rules
- Video call: support H.263, H.264 video encoding, support point-to-point video call
- Data function: support static IP, DHCP Client, PPPoE, WAN sub-interface, support routing mode, bridge mode, DDNS, static routing, NAT, port mapping, uPnP, virtual domain name, ALG, DNS, NTP, DHCP services.Internet behavior management: QoS strategy, broadband strategy

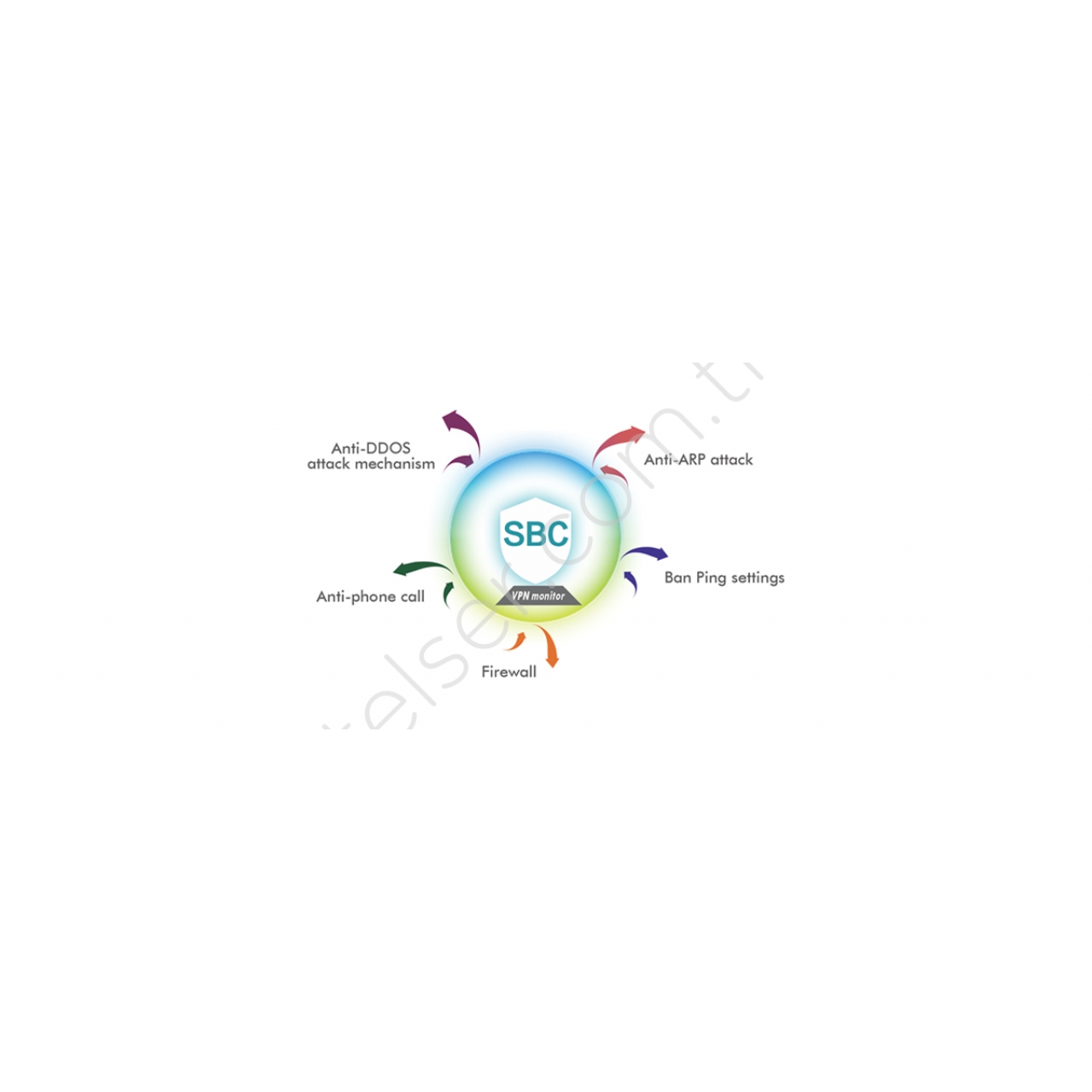

- Security features: support the control and management of permissions by roles, support basic firewall
functions, support VPN service IPSEC, PPTP mode, IP/MAC binding, ARP anti-attack
DDoS protection: Ping of Death, Teardrop, TCP Flood, UDP Flood,Traceroute, IP Spoofing, Port Scan,
WINNUKE Attack. - Management features: Provide WEB management interface, support self-service, support TR069 and
SNMP management protocol, provide system tools, alarm management, log management
Business
Basic business - Intra-office call: Intra-office users of the LVSWITCH series can perform voice calls with each other as
the calling or called party. - Narrowband inter-office call: LVSWITCH series can communicate with PSTN or traditional PBX through PRI, R2, SS7 trunk
- Broadband interoffice call: LVSWITCH series can communicate with other IPPBX, NGN or IMS through SIP trunk.
Supplementary business
Calling services:local number query, calling number identification display, calling number display
restricted service, unconditional call forwarding, call forwarding when the user is busy, call forwarding
when there is no answer, call forwarding for unregistered users, blind transfer, Inquiry transfer,
call waiting, call hold, three-way calling, abbreviated dialing, flash hook authority, secretary service
Call restriction service:outgoing call permission, blacklist, call time limit, do not disturb, absent user
Pickup service:same group pickup, designated pickup
Hotline business:immediate hotline, delayed hotline
Ringing service:simultaneous ringing service, sequential ringing service, and alarm service
Value-added services::Voice to Mail, IVR, queues, seats, one-number communication, CRBT services, billing services, call recording.
